The HPE ProLiant DL360 Gen10 Server supports the Intel Xeon Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business.

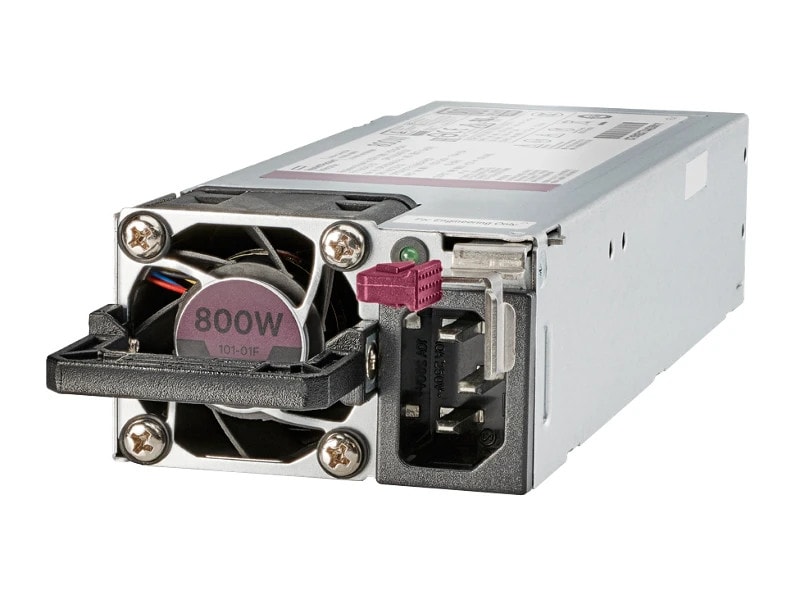

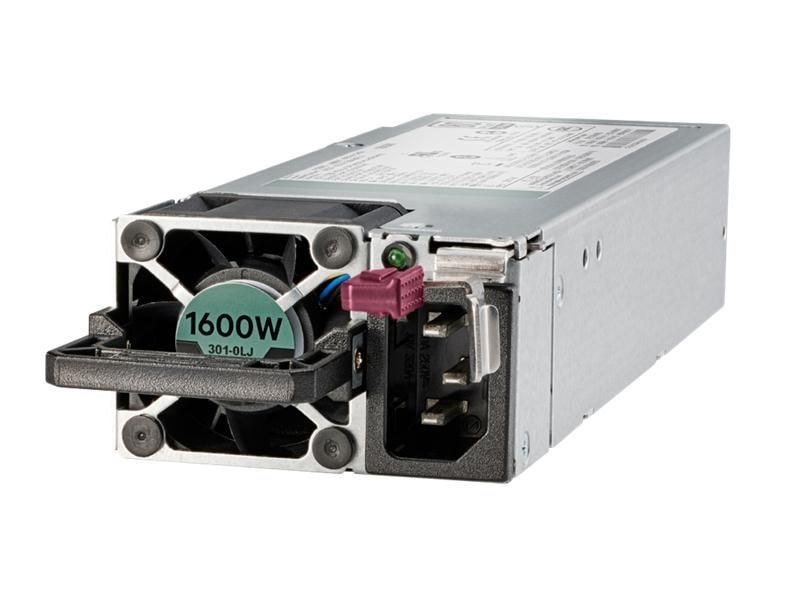

This refurbished server can support a maximum of two of Intel's new Scalable family of processors, either the Bronze 3100 series, Silver 4100 series, Gold 5100 & 6100 series, or Platinum 8100 series which can support 4 to 28 cores depending on what processor you decide to choose. This platform supports up to 3TB of memory and with two top of the line processors installed, that means you can have the potential of 56 cores! More cores and memory means support for more virtual machines or containers. One or Two HPE Flexible Slot power supplies are what power this system and they come in a variety of options, either 500W, 800W, or 1600W power supplies with efficiencies of 94% and 96%. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing customers to choose the power supply which is perfect for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data centre.

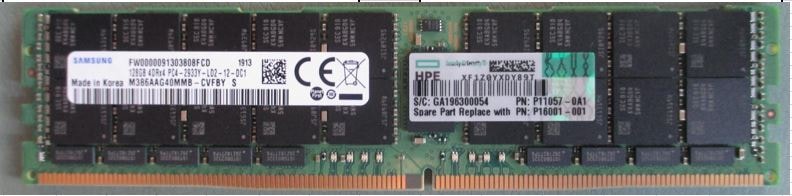

With each processor installed in this system, it can support six memory channels that can support two memory modules each for 12 slots per processor. In a two processor configuration, the system will support 24 DDR4 memory modules running at speeds of up to 2666MHz. Using 128GB load reduced (LRDIMM) memory modules in all 24 slots, the system will support a maximum of 3TB of memory in a two processor configuration. With HPE's SmartMemory non-volatile (NVDIMM) memory modules, the system will support up to 192GB using 16GB NVMe memory modules in 12 slots again with a two processor configuration. HPE Persistent Memory is ideal for database and analytic applications requiring substantial compute. The same memory must be chosen as mixing the memory modules types is not supported.

This version of the HP ProLiant DL360 will only support 2.5" NVMe drives, if you're needing your server to be populated with other drive types please check out the other DL360 we have on our site.

This DL360 Gen10 can support the following: Maximum of 2 Quad (4) Core, all the way up to 56 Core CPU's 768GB Registered RDIMM PC4-2400 ECC DDR4 Memory 3TB Load Reduced LRDIMM PC4-2400 ECC DDR4 Memory 1 x FlexLOM 1 x Smart Array Controller Battery Option Up to 3 x PCI Express slots 2x Hot Plug Power Supply Bays Up to 10 x NVMe SFF (Small Form Factor) Hot Swap Hard Drive Bays Rack Rail & Cable Management Arm Option ILO License

This refurbished HP ProLiant DL360 Gen10 server from Intelligent Servers UK offers huge improvements in performance over the previous generation by adding the use of the Intel Scalable Family of processors. Not only that but having the choices of persistent memory, persistent storage, and many other improved hardware & firmware upgrades you can tell HPE has really pushed the limits of this new server.

The HPE ProLiant DL360 Gen10 Server supports the Intel Xeon Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB max. With the added performance that HPE Persistent Memory and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business.

This refurbished server can support a maximum of two of Intel's new Scalable family of processors, either the Bronze 3200 series, Silver 4200 series, Gold 5200 & 6200 series, or Platinum 8200 series which can support 4 to 28 cores depending on what processor you decide to choose. This platform supports up to 3TB of memory and with two top of the line processors installed, that means you can have the potential of 56 cores! More cores and memory means support for more virtual machines or containers. One or Two HPE Flexible Slot power supplies are what powers this system and they come in a variety of options, either a 500W, 800W, or 1600W power supplies with efficiencies of 94% and 96%. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing customers to choose the power supply which is perfect for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data centre.

With each processor installed in this system It can support six memory channels that can support two memory modules each for 12 slots per processor. In a two processor configuration, the system will support 24 DDR4 memory modules running at speeds of up to 2666MHz. Using 128GB load reduced (LRDIMM) memory modules in all 24 slots, the system will support a maximum of 3TB of memory in a two processor configuration. With HPE's SmartMemory non-volatile (NVDIMM) memory modules, the system will support up to 192GB using 16GB NVMe memory modules in 12 slots again with a two processor configuration. HPE Persistent Memory is ideal for database and analytic applications requiring substantial compute. The same memory must be chosen as mixing the memory modules types is not supported.

This version of the HP ProLiant DL360 will only support 2.5" NVMe drives, if you're needing your server to be populated with other drive types please check out the other DL360 we have on our site.

This DL360 Gen10 can support the following: Maximum of 2 Quad (4) Core, all the way up to 56 Core CPU's 768GB Registered RDIMM PC4-2400 ECC DDR4 Memory 3TB Load Reduced LRDIMM PC4-2400 ECC DDR4 Memory 1 x FlexLOM 1 x Smart Array Controller Battery Option Up to 3 x PCI Express slots 2x Hot Plug Power Supply Bays Up to 10 x NVMe SFF (Small Form Factor) Hot Swap Hard Drive Bays Rack Rail & Cable Management Arm Option ILO License

This refurbished HPE ProLiant DL360 Gen10 server offers huge improvements in performance over the previous generation by adding the use of the Intel Scalable Family of processors. Not only that but having the choices of persistent memory, persistent storage and many other improved hardware & firmware upgrades you can tell HPE has really pushed the limits of this new server.

The HPE ProLiant DL380 Gen11 P71681-005 is a high-performance 2U rack server designed for modern enterprise environments where reliability, expandability and workload flexibility are essential. Built on HPE’s trusted ProLiant DL380 platform, this server is well suited for organisations that require a dependable infrastructure platform for virtualisation, database hosting, backup, private cloud, application hosting, file services and business-critical workloads. This specific configuration is based on the HPE P71681-005 Smart Choice platform and has been upgraded to provide a powerful storage-focused server build. The base model includes an Intel Xeon Gold 6526Y processor, enterprise-grade DDR5 memory support, 8 × 2.5" SFF drive bay capability, redundant power supplies, high-performance cooling and HPE iLO 6 management. VeriLicense upgrades this configuration to 512GB DDR5 ECC Registered Memory and 6 × 7.68TB enterprise SSD/NVMe drives configured in RAID 5. With 6 × 7.68TB drives installed, the server provides 46.08TB of raw storage capacity. When configured in RAID 5, the approximate usable capacity is 38.4TB before formatting, filesystem and operating system overhead. This makes the system ideal for customers who need a large internal storage pool within a single 2U server while still retaining fault tolerance against a single drive failure. The 8 × 2.5" SFF drive bay chassis provides a clean and practical storage layout. Six of the eight front bays are used for the 7.68TB enterprise drives, leaving two front drive bays available for future expansion or alternative storage requirements. Depending on the selected drive type, the platform can be configured with SAS, SATA or NVMe/U.3 enterprise drives, subject to the correct backplane, controller, cabling and enablement components being installed. The server also includes HPE’s NS204i-u Gen11 NVMe boot-optimised storage device, allowing the operating system to be separated from the main front drive storage array. This is useful for environments where the primary 6-drive RAID 5 volume is reserved for virtual machines, backup data, databases, file storage or application workloads. For remote management, monitoring and lifecycle administration, the DL380 Gen11 platform includes HPE iLO 6. This gives IT teams secure out-of-band management capabilities, allowing administrators to monitor server health, manage firmware, access the system remotely and support the server throughout its lifecycle. This upgraded P71681-005 build is ideal for organisations looking for a compact but powerful 2U platform with high memory capacity and strong internal SSD/NVMe storage. It is particularly well suited for VMware, Microsoft Hyper-V, backup repositories, database workloads, private cloud infrastructure, VDI deployments and general-purpose enterprise infrastructure refresh projects. Key Configuration Manufacturer: Hewlett Packard Enterprise Model: HPE ProLiant DL380 Gen11 HPE Part Number: P71681-005 Form Factor: 2U Rack Server Processor: 1 × Intel Xeon Gold 6526Y 16-core processor Base Memory: 128GB DDR5 Configured Memory: 512GB DDR5 ECC Registered Memory Drive Bay Chassis: 8 × 2.5" SFF SAS/SATA or NVMe capable chassis Storage Configuration: 6 × 7.68TB enterprise SSD/NVMe drives Raw Storage Capacity: 46.08TB RAID Configuration: RAID 5 Approximate RAID 5 Usable Capacity: 38.4TB before formatting Boot Device: HPE NS204i-u Gen11 NVMe boot-optimised storage device Power Supplies: 2 × HPE 1000W Flex Slot Titanium Hot Plug Power Supplies Cooling: High-performance fan kit Management: HPE iLO 6 Warranty: 3-year parts, 3-year labour, 3-year onsite support, depending on final supply route Storage Capacity Explanation This configuration uses 6 × 7.68TB enterprise drives. Raw storage capacity: 6 × 7.68TB = 46.08TB raw RAID 5 usable capacity: 5 × 7.68TB = 38.4TB usable before formatting RAID 5 uses the equivalent capacity of one drive for parity protection. This means the array can tolerate the failure of one drive while retaining access to the stored data. Final usable capacity shown inside the operating system may be lower due to formatting, filesystem overhead and decimal versus binary capacity reporting. Important RAID 5 Note RAID 5 provides a balance of capacity and resilience, but it does not provide the same level of protection as RAID 6. RAID 5 can tolerate one drive failure. RAID 6 can tolerate two drive failures but reduces usable capacity further. For customers who prioritise maximum usable capacity, RAID 5 is a common choice. For customers who prioritise stronger protection and reduced rebuild risk, RAID 6 may be recommended, especially where large-capacity SSDs are used. Drive Bay Usage Total front drive bays: 8 × 2.5" SFF Drives installed: 6 × 7.68TB SSD/NVMe Front bays remaining: 2 available This gives the customer a neat internal storage configuration while still leaving limited room for future expansion. Recommended Use Cases Virtualisation hosts VMware vSphere environments Microsoft Hyper-V environments Backup and recovery platforms Database workloads Private cloud infrastructure VDI deployments High-capacity file services Application hosting Storage-heavy workloads Enterprise infrastructure refresh projects Hybrid cloud environments Disaster recovery platforms Data centre consolidation Customer Benefits High-capacity storage inside a single 2U server 512GB DDR5 memory for demanding workloads RAID 5 storage layout for capacity and single-drive fault tolerance 8 × 2.5" front drive bay chassis with 2 spare bays after configuration Enterprise-grade HPE ProLiant DL380 Gen11 platform

Ideal for virtualisation, backup, database and private cloud workloads HPE iLO 6 management for remote administration Redundant power supplies for improved resilience High-performance fan kit for enterprise server cooling Suitable for production infrastructure and business-critical applications Technical Specification Table Specification Details Manufacturer Hewlett Packard Enterprise Product Family HPE ProLiant DL380 Gen11 HPE Part Number P71681-005 Form Factor 2U Rack Server Processor Intel Xeon Gold 6526Y Processor Cores 16 cores Base Memory 128GB DDR5 Configured Memory 512GB DDR5 ECC Registered RAM Drive Bay Chassis 8 × 2.5" SFF SAS/SATA or NVMe capable chassis Installed Storage 6 × 7.68TB enterprise SSD/NVMe drives Raw Storage 46.08TB RAID Level RAID 5 RAID 5 Usable Capacity Approx. 38.4TB before formatting Boot Storage HPE NS204i-u Gen11 NVMe boot device Power 2 × 1000W Flex Slot Titanium Hot Plug PSUs Cooling High-performance fan kit Remote Management HPE iLO 6 Rack Rails Rail kit included depending on final supply route Warranty 3-year warranty depending on final configuration and supply route Website Bullet Points HPE ProLiant DL380 Gen11 2U enterprise rack server Based on HPE SKU P71681-005 Intel Xeon Gold 6526Y 16-core processor Upgraded to 512GB DDR5 ECC Registered Memory 8 × 2.5" SFF SAS/SATA or NVMe drive bay chassis 6 × 7.68TB enterprise SSD/NVMe drives 46.08TB raw storage capacity RAID 5 configuration Approx. 38.4TB usable capacity before formatting HPE NS204i-u Gen11 NVMe boot device Dual 1000W Titanium hot-plug power supplies High-performance fan kit HPE iLO 6 remote management
