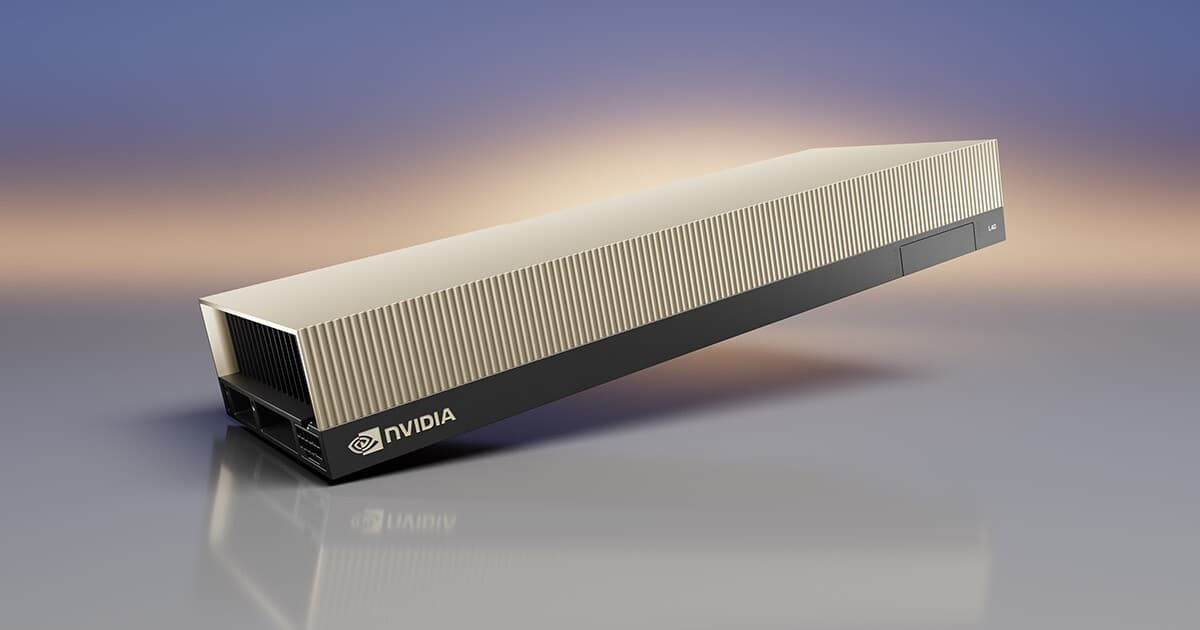

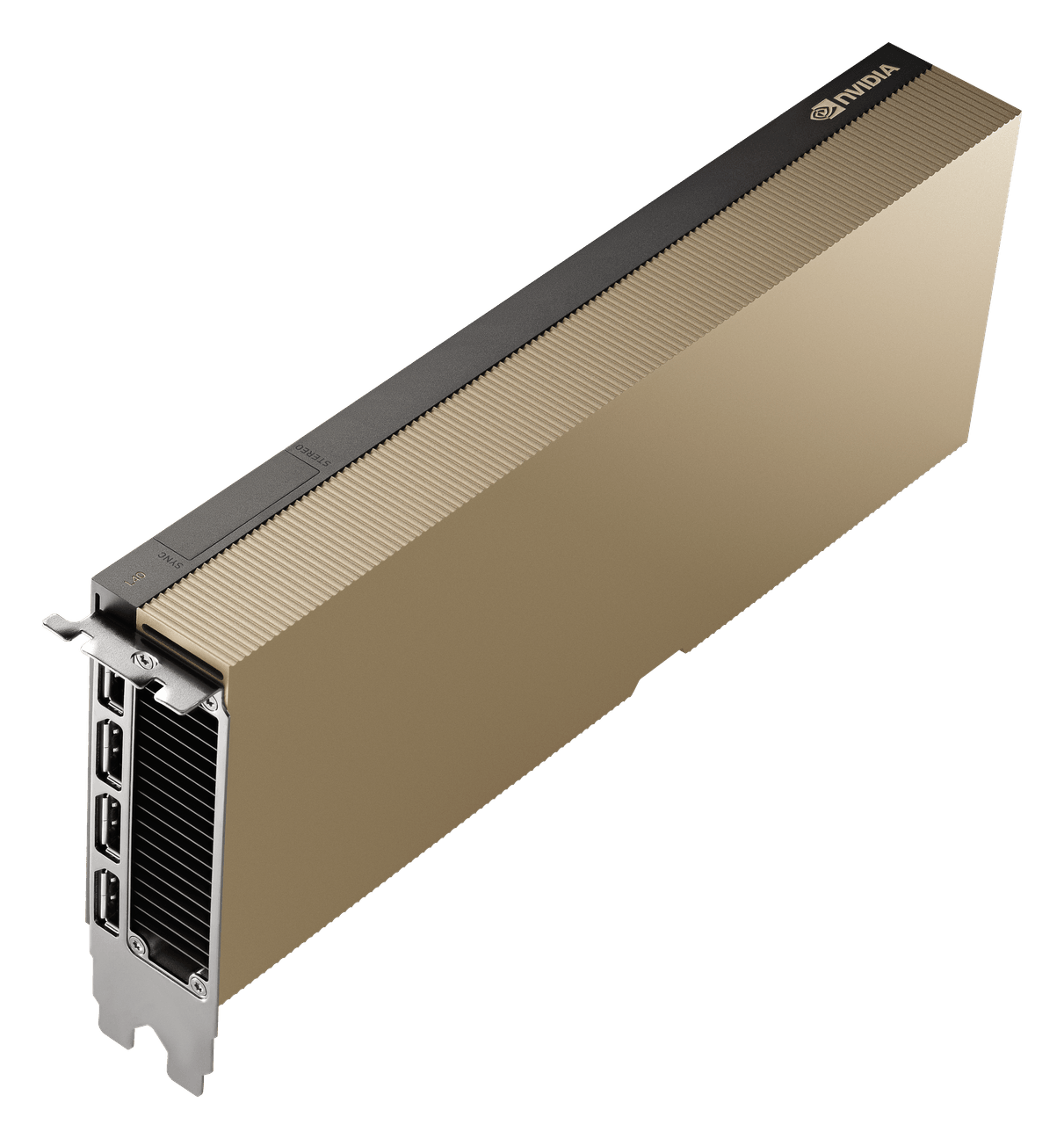

NVIDIA L40 48GB GDDR6 Data-Centre GPU (Passive, PCIe 4.0)

SKU 900-2G133-0010-000

NVIDIA L40 48GB GDDR6 data-centre GPU. Passive, PCIe 4.0, for graphics and AI inference.

NVIDIA L40 48GB GDDR6 Data-Centre GPU (Passive, PCIe 4.0)
NVIDIASKU 900-2G133-0010-000

Quick spec

Memory
48 GB GDDR6
Interface
PCIe 4.0 x16
Outputs
4 x DisplayPort
Cooling
Fanless (passive)

Price on application

Configurations vary by server, support tier and volume. We come back same day with pricing and lead time.

Request a quote on this SKU

Overview

What's included.

The NVIDIA L40 is a 48GB GDDR6 data-centre GPU for graphics, rendering, and AI inference. It is the non-S L40, distinct from the L40S. The passive PCIe 4.0 card fits standard server GPU bays. Use it for VDI, virtual workstations, and Omniverse workloads. Pricing is quote-led for trade buyers.

Key Specifications

  • GPU Architecture: Nvidia Ada Lovelace
  • CUDA Cores: 18,176
  • RT Cores (3rd Gen): 142
  • Tensor Cores (4th Gen): 568
  • GPU Memory: 48 GB GDDR6 with ECC
  • Memory Bandwidth: 864 GB/s
  • Memory Interface: 384-bit
  • Peak FP32 Performance: 91.6 TFLOPS
  • Peak Tensor Performance: 733–1,466 TFLOPS (with sparsity)
  • RT Core Performance: 209–212 TFLOPS
  • Max Power Consumption: 350 W
  • System Interface: PCIe Gen 4.0 x16
  • Form Factor: Full-height, full-length, double-width (4.4" x 10.5")
  • Thermal Solution: Passive
  • Power Connector: 16-pin
  • Display Connectors: 4x DisplayPort 1.4a (disabled by default)
  • Max Simultaneous Displays: Up to four 5K monitors at 60Hz or dual 8K displays at 60Hz
  • Virtual GPU (vGPU) Support: Yes (Nvidia vPC/vApps, Nvidia RTX Virtual Workstation)
  • NVLink Support: No
  • MIG Support: No
  • Secure Boot with Root of Trust: Yes
  • NEBS Ready: Level 3
  • Graphics APIs: Directx 12 Ultimate, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3
  • Compute APIs: CUDA 12.0, DirectCompute, OpenCL 3.0
  • NVENC/NVDEC: 3x encode, 3x decode (includes AV1 support)
